Hard Ferrite Magnets Expert & Solutions Provider- 14 YearsHigh-Performance Hard Ferrite (Ceramic) Magnets Professional Supplier In China
Our hard magnet's raw material is strontium which produced by sintered compression molding. Customizable by shape, magnetic orientation, and performance grade (mid-to-high end). From wet/dry pressing to bonded ferrite - tailored solutions for your industrial needs.
Arc Segment Curved Magnet
Ring Magnet
Block Magnet
Disc Magnet
Available Shapes & Forms
From standard geometries to custom-designed shapes. We manufacture strontium hard ferrite magnets in any configuration to match your exact specifications.

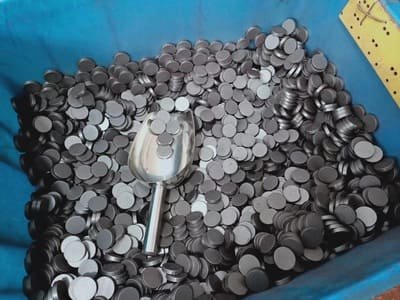

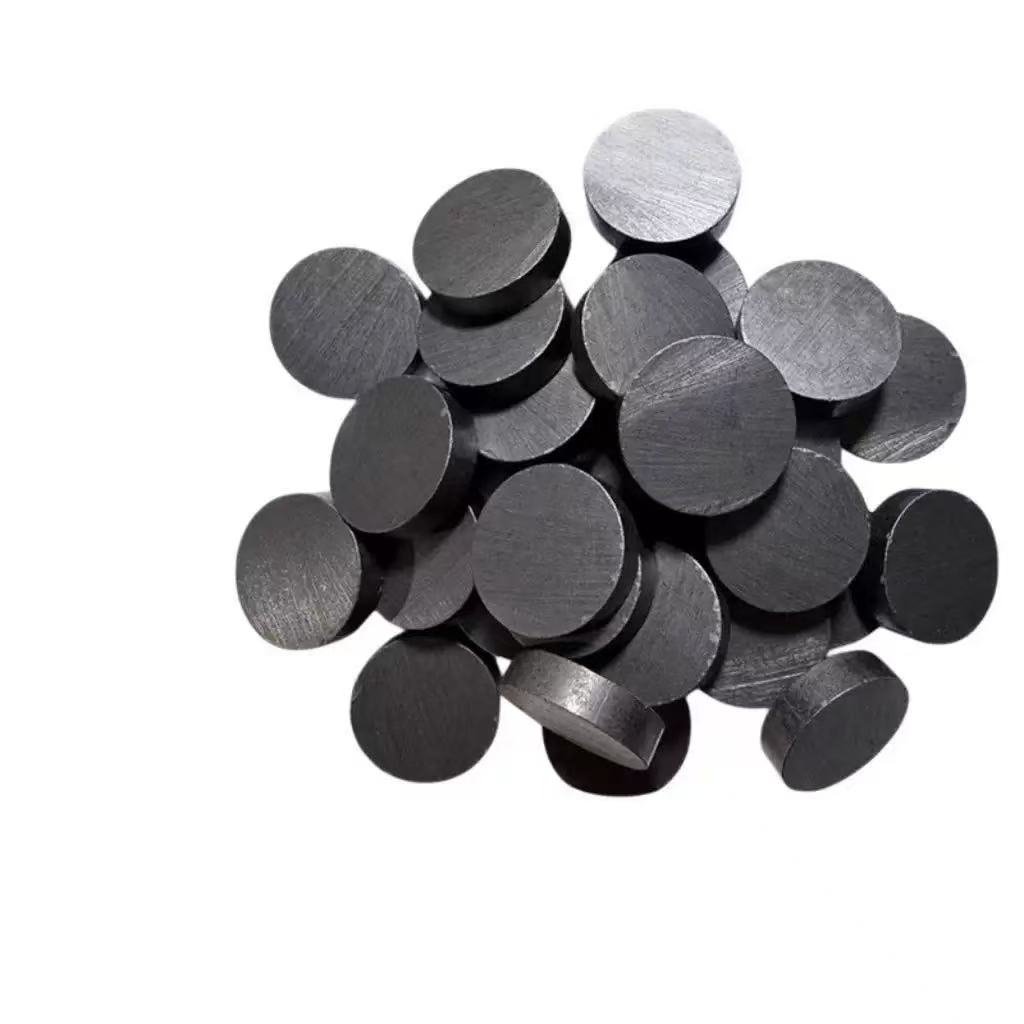

Disc Magnets
Circular flat magnets for motors, sensors, and holding applications are mainly axially magnetized. Minimum thickness: 2mm. We do not recommend extremely thin magnets due to deteriorating mechanical strength, magnetic properties, and manufacturing yield.
Get a Quote For Disc Shape

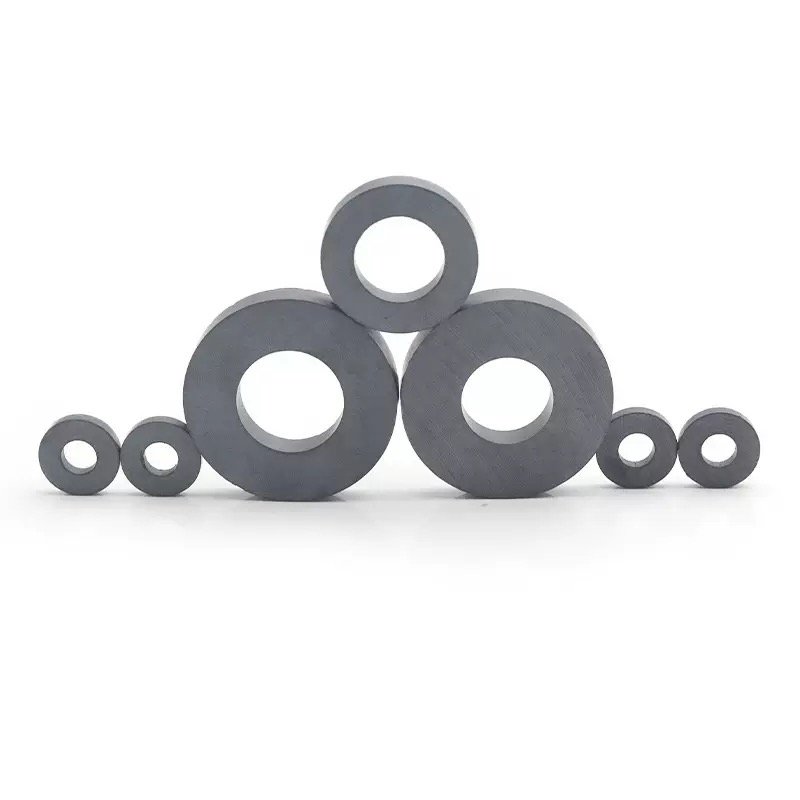

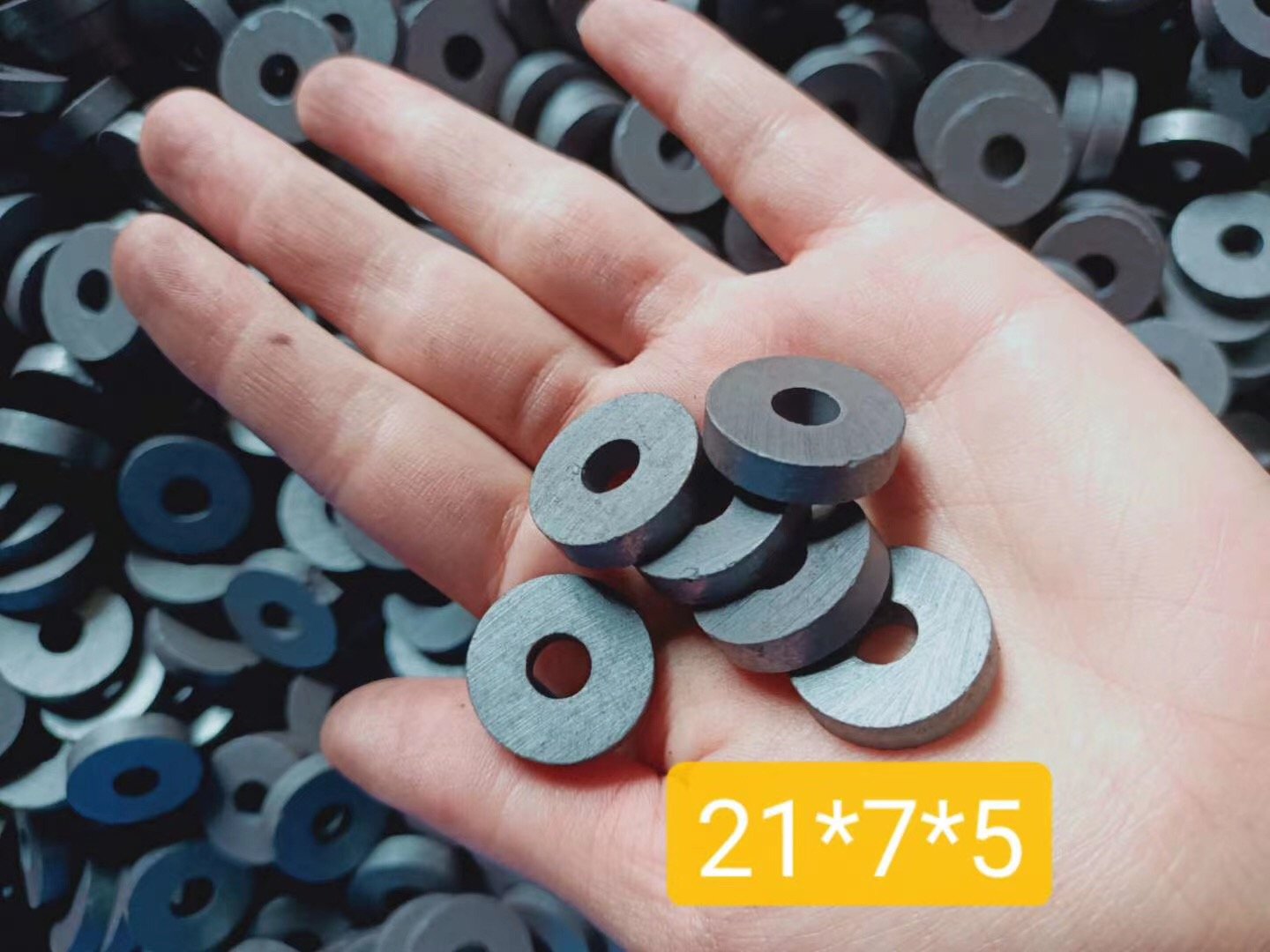

Ring Magnets
Most regular ring magnets are axially magnetized, while ring magnets used in automobile motors(ferrite radial-oriented multipole ) or sensors are typically radially or multipolarly magnetized. Of course, the raw materials and production process will also differ.
Get a Quote For Ring Shape

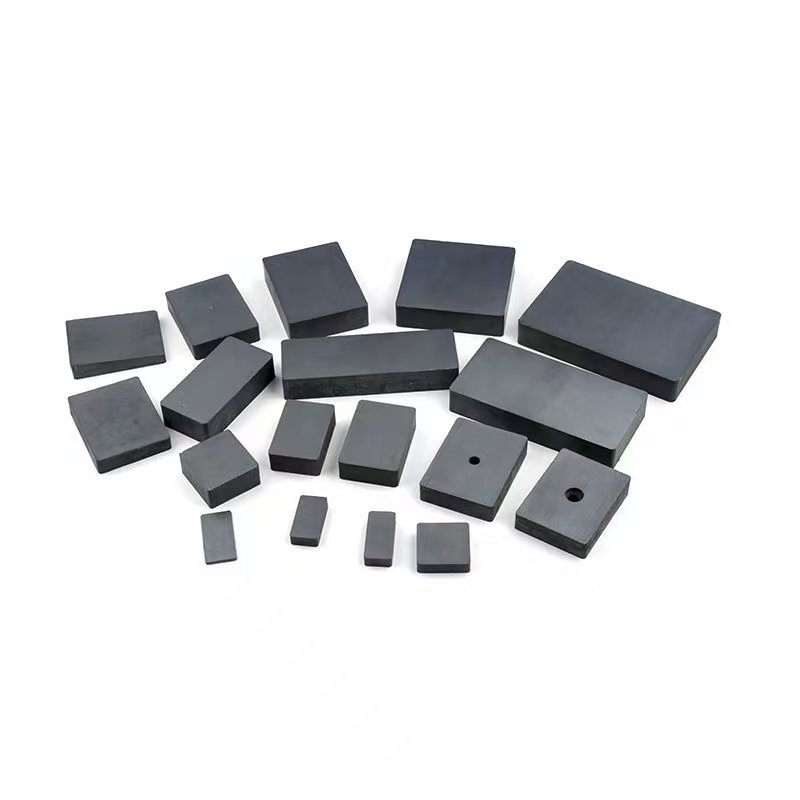

Block/Rectangle/Axe-shaped /Cube Magnets
Block magnets are typically magnetized along their thickness. Drilling or Countersunk hole is possible. Large blocks are used in magnetic separators, while small blocks serve motors, clamping applications, and cabinet doors.
Get a Quote For Block Shape
Arc Segments (Curved/Sector)

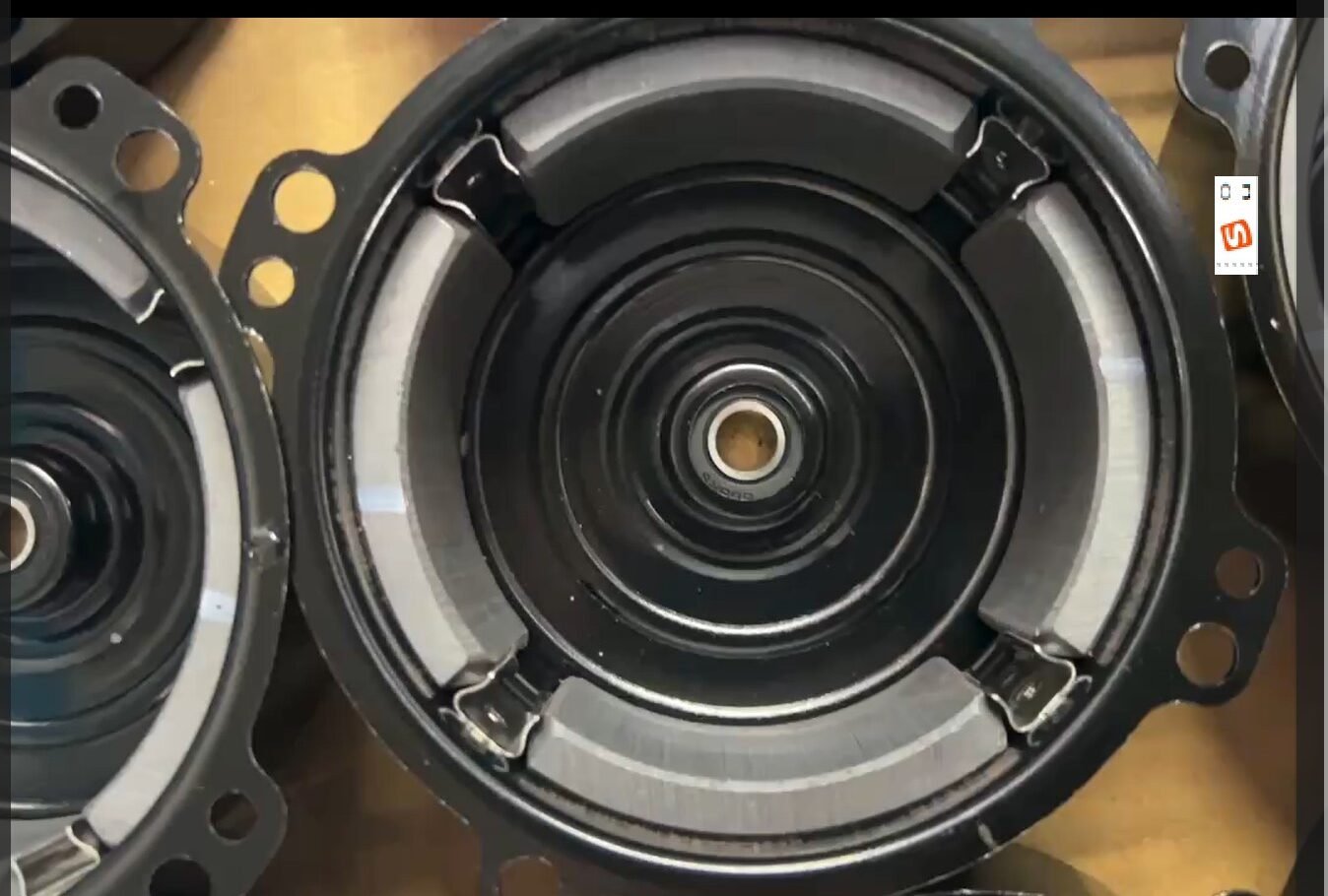

High-performance strontium ferrite arc magnets for automotive and industrial BLDC motor applications. Advanced wet pressing technology ensures superior magnetic characteristics. Radial and multipole magnetization configurations available for optimized motor performance. Please provide product drawings or dimensions (OR, IR, Height, Width, Length) - fast CAD drawing creation for approval.
Get a Quote For Arc Shape

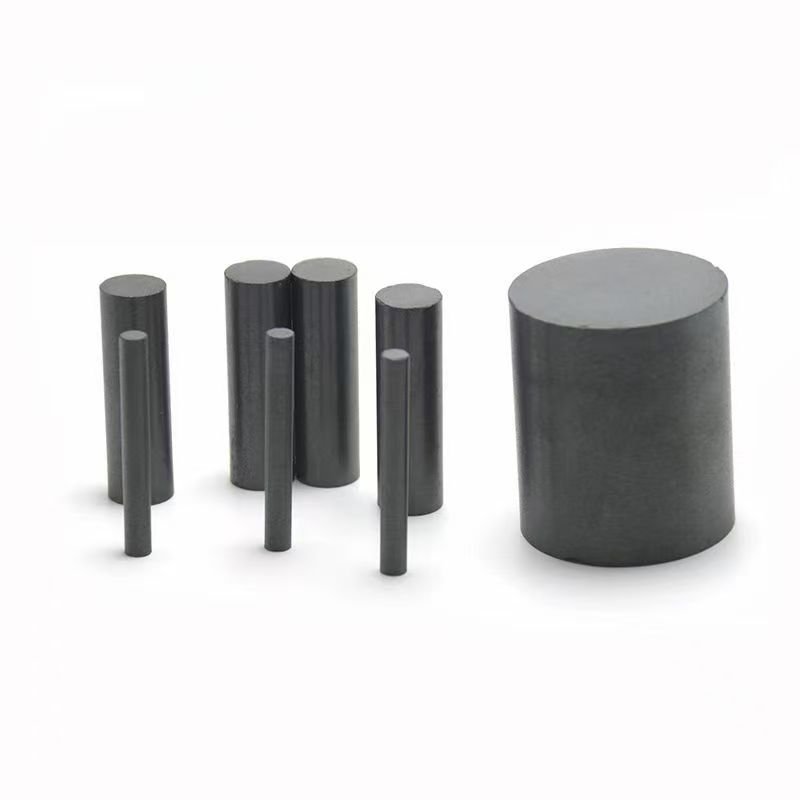

Rod/Cylinder Ferrite Magnets
Rod ferrite magnets are mainly used in motors, loudspeakers, magnetic separation equipment, and mounting fixtures. They can be divided into isotropic and anisotropic types: isotropic magnets have flexible magnetization directions, while anisotropic magnets have a fixed orientation during molding and stronger magnetic properties. We can produce with diameters ranging from 3 mm to 25 mm and heights up to 30 mm.
Get a Quote For Rod Shape

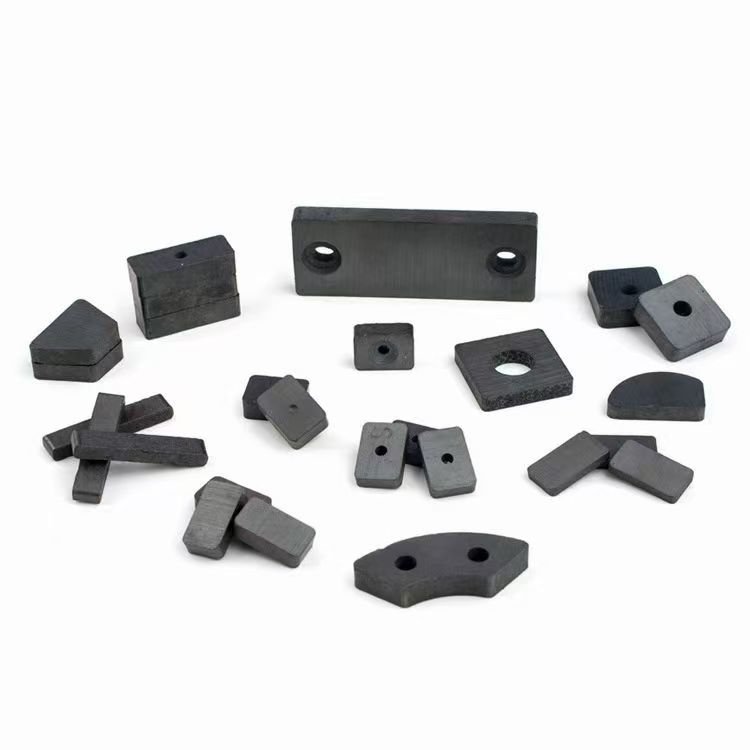

Custom Shapes
Other ferrite magnets shapes: bar, trapezoidal, sector-shaped, countersunk, L/T-shaped with holes, irregular blocks with grooves, bread-shaped, and complex curved surfaces. Custom-made per drawings using wet pressing (high performance) or dry pressing + machining (high precision). For very complex geometries, bonded ferrite injection molding is recommended.
Get a Quote For Custom ShapeWet & Dry Pressing
Superior performance with wet-pressed anisotropic magnets
Magnetization Options
Axial, Diametrical, Multi-pole, Radial-Oriented rings
Orientation Types
Anisotropic (higher performance) & Isotropic options
Technical Characteristics
Mid-to-high performance grades with detailed magnetic properties. All specifications tested and certified.
| Grade | Br (Gs) | Hcb (Oe) | Hcj (Oe) | (BH)max (MGOe) | Curie Temp (°C) | Equal |
|---|---|---|---|---|---|---|
| Y10T | 2000-2350 | 1650-2000 | 2700-3300 | 0.8-1.1 | 460 | Isotropic grade,C1,HF8/22 |
| Y30 | ≥3800 | 2600±150 | 2700±150 | ≥3.3 | 460 | C5 |
| Y30BH HOT | ≥3800 | ≥2750 | ≥2900 | ≥3.4 | 460 | C8 |
| Y30H-1 | ≥3800 | ≥2850 | ≥3000 | ≥3.45 | 460 | C8(A) |
| Y30H-2 HOT | 4050±100 | 3600±150 | 4100±150 | 4.1±0.2 | 460 | C12, FB5H |
| Y32H-2 | 4000±100 | 3300±150 | 3400±150 | 3.6±0.2 | 460 | C10, HF28/26 |
| Y33 | 4100±50 | 3400±100 | 3550±100 | 4.2±0.2 | 460 | C10, FB5B |
Y35
HOT | 4000±50 | 3650±100 | 4150±100 | 43.6±0.2 | 460 | C9, FB6 |
| Y38 | 4300±50 | 3800±125 | 4600±125 | 4.6±0.2 | 460 | C11, FB9 |
| Y40 | 4400±50 | 3950±125 | 4600±125 | 4.8±0.2 | 460 | C11, FB9B |
* Values are typical ranges. Exact specs depend on shape, magnetization direction, and production batch. Contact us for certified datasheets. | ||||||
Quality Testing
Complete quality verification: Batch testing covers Br, Hcj, appearance, and dimensions with full QC documentation. Rigorous visual inspection ensures defect-free surfaces - no cracks, notches, particles, or contamination. Precision dimensional control via caliper/micrometer measurement
Coating Options
Hard ferrite(ceramic) magnets have excellent oxidation resistance and typically require no protective coating. However, some small hard ferrite components can be plated, such as bread magnets in magnetic therapy products for end-consumer use.
Safe Packaging
Bulk shipments (>500 kg) for maritime transport: corrugated boxes on steel pallets, secured with stretch wrap. Each box labeled with carton sticker (magnet type and quantities), each pallets marked "Fragile" for careful handling throughout logistics.
Solutions by Industry
Serving diverse sectors with tailored hard ferrite(ceramic) magnet solutions. From water pumps to automotive motors.

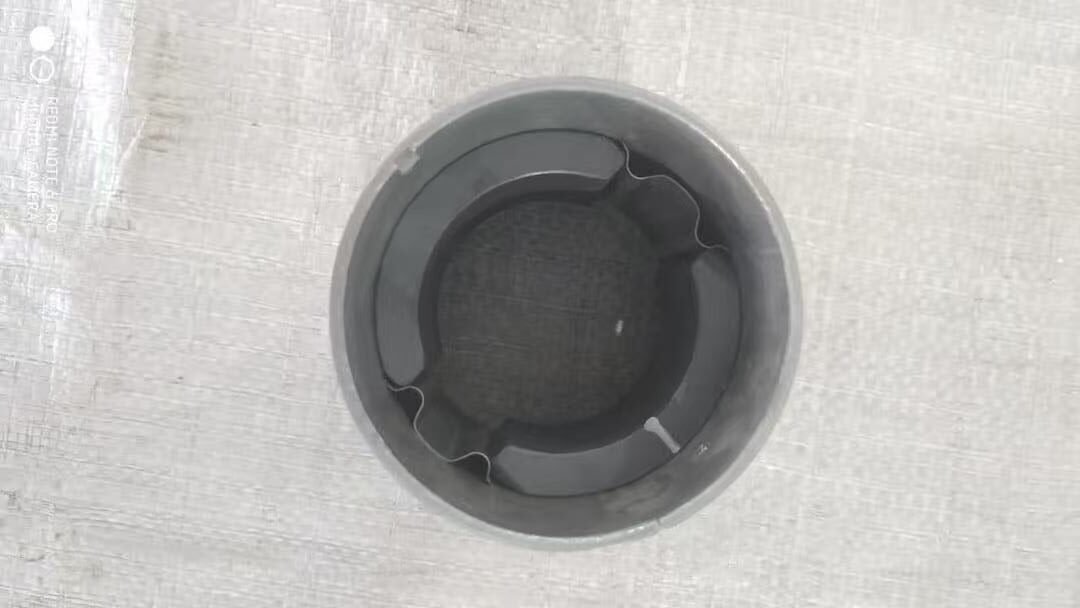

Water Booster Pump Motors
Key Grades: Y30H/Y35, OR range 30-60 mm. Our arc segment shape hard ferrite magnets are precision-engineered for water booster pump BLDC motors. Directly insert into motor housings for quick assembly. Popular in emerging markets like India, Vietnam, Korea, and Middle Eastern countries.
- High torque density for efficient pumping
- Corrosion-resistant coating for wet environments
- Cost-effective for large-volume production
Customization Process
From concept to delivery - our streamlined process ensures fast turnaround and consistent quality.
Requirement Analysis
Submit drawings, magnetic properties (Y30/Y30H/Y33), or application scenarios
Technical Proposal
Engineering team provides optimal magnetization solution and wholesale pricing
Sample Development
Custom tooling or rapid prototyping based on your shape requirements
Strict QC Testing
Testing of Br, Hc, and critical magnetic properties with full reports
Mass Production
Efficient production with secure packaging and reliable global delivery
Trusted by Global Partners
14+ years of proven excellence. Our hard ferrite magnets power products worldwide.
Global Exhibitions
Showcasing innovations at international magnetic materials trade shows.
Customer Visits
International clients touring our Maanshan production facility.

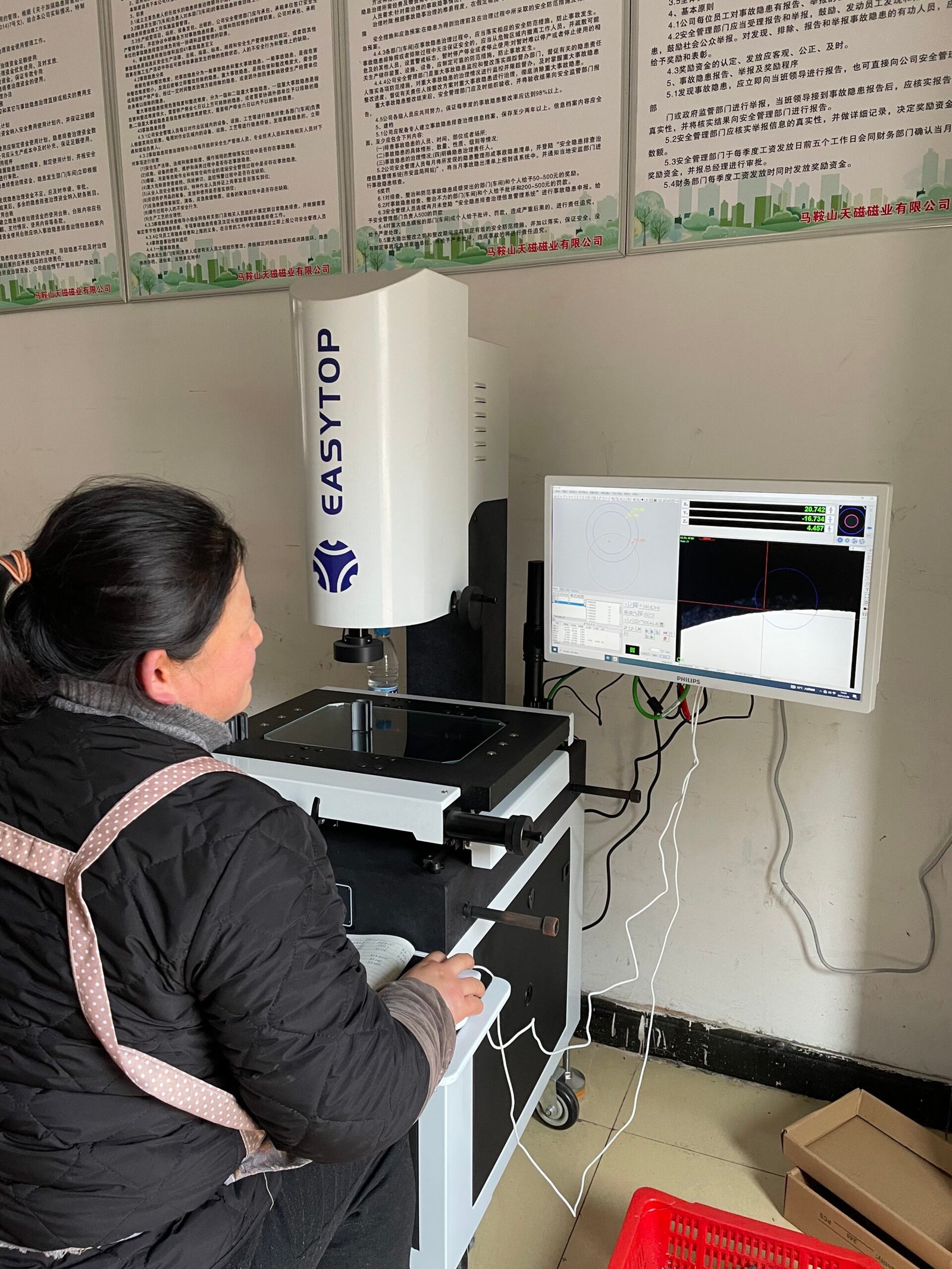

Quality Assurance
State-of-the-art testing equipment for magnetic property verification.
Why Choose ProfurtherMag?
Free Mold Usage
Existing molds available at no cost. Mold fees refunded on volume orders.
Free Sample Testing
Test low-to-high grade samples before committing to production.
Experienced Team
50+ skilled workers with deep expertise in hard ferrite magnet manufacturing.
Global Market Reach
Serving USA, Europe, Middle East, India, Vietnam, Korea, and beyond.
Request a Custom Quote & Free Sample
Submit your specifications and get a wholesale quote within 1 hour. Free sample testing available.
