Hard Ferrite (Ceramic) Magnets • Manufacturing Route

Injection Molded Ferrite

Ferrite powder in a thermoplastic binder, molded to shape — thin walls and complex geometry in a single step; the polymer matrix lowers flux density.

Request Manufacturing Feasibility Review View Process Characteristics ↓

Injection molded ferrite is a bonded magnet route: ferrite magnetic powder is compounded with thermoplastic binders such as PA6 (Nylon 6), PA12 (Nylon 12) or PPS and injected directly into complex dimensional tooling. The magnet is formed to shape in the mold rather than compacted from powder and finished by grinding.

How the part is formed

The ferrite powder is compounded into a thermoplastic pellet, so the magnetic material reaches the machine already mixed with its binder.
The steel mold sets the geometry: thin walls, ribs, bosses, bores and pockets come out of the cavity, not off a machining centre.
A shaft, bushing or bracket can be placed in the tool so the magnet is molded around it, turning two parts and a glue joint into one component.
The part is magnetized after molding in a fixture that sets the pole pattern, and normally needs no coating.

Where the design calls for maximum flux inside a fixed envelope, the same drawing is reviewed against wet pressed or dry pressed ferrite instead: those routes carry more magnetic material per unit volume, at the cost of the geometry described on this page.

Route Matrix

Core Process Characteristics

The material this route works in, the advantage that decides it, the limitation to plan around, and the parts it is normally specified for.

Primary Material	Hard Ferrite (Ceramic) Magnets
Core Advantage	Thin walls and complex geometry are molded in one step, which is why this route is chosen over pressing for a difficult part Shafts, bushings and mounting features are molded in with the magnet, taking parts and glue joints out of the assembly Tolerance comes from the tool, so dimensions a pressed part would need post-machining to hold can be molded directly The polymer matrix absorbs impact, so a thin section is less likely to chip than a sintered ceramic part of the same wall The binder encapsulates the ferrite particles, so the part normally needs no coating Multipole and radial-oriented patterns on thin rings for motors and sensors, evaluated against the tooling and the magnetizing fixture
Key Limitation	Polymer matrix lowers the magnetic volume fraction and overall flux density compared with sintered magnets Not the route for high-flux motor arcs Mold and magnetizing fixture costs are project-specific Feasibility depends on shape, magnetization pattern and quantity Operating temperature depends on the magnetic grade, binder system and application. Moisture absorption, dimensional change, chemical compatibility and long-term mechanical stability must be evaluated for the selected formulation.
Typical Applications	Laser printer and photocopier magnetic rollers Small DC and BLDC motor rotors, including fan and pump motors Multipole sensor rings for commutation and position sensing Automotive instrument clusters, actuators and small auxiliary motors Smart meter and flow sensor rotors Insert-molded assemblies, where the magnet is molded onto a shaft or bushing Thin-wall rings in appliances and power tools

Route Detail

Process Characteristics

The parameters recorded for this route, each with the note that says how it is confirmed on a project.

Primary Material	Strontium ferrite powder in a thermoplastic compound A bonded ferrite route rather than a sintered one.
Binder Type	PA6, PA12 or PPS The binder and compound grade are selected against the operating temperature, chemical exposure and part design, and confirmed for each project.
Forming Method	Injection molding into a steel mold The cavity sets the geometry and the dimensional precision the part holds.
Forming Capability	Complex shape in a single molding step Ribs, bosses, bores, pockets and undercuts are formed by the tool rather than added by a second operation.
Wall Thickness	Thin-wall sections formed by the mold The minimum wall follows the flow length, the binder and the part design, and is confirmed during tooling review against the drawing.
Insert Molding	Shafts, bushings and brackets can be molded in Insert retention and interface strength are confirmed for the assembly.
Surface Treatment	Normally none required The binder encapsulates the ferrite particles, so the part is not plated; a specific chemical, outdoor or wash-down environment is confirmed per project.
Operating Temperature	-40 °C to 130 °C Range for the listed binder systems; the actual magnet temperature and application conditions are confirmed for the project.
Magnetic Orientation	Isotropic or anisotropic, depending on the compound An anisotropic compound is oriented while the part is molded; the final magnetization direction and pole pattern remain a separate requirement, evaluated against the formulation, part and magnetizing fixture.
Magnetization Options	Multipole, radial-oriented multipole — confirmed per project Suited to sensor and small motor designs; the pole pattern is evaluated against the formulation, part and magnetizing fixture.
Flux Density	Lower than sintered ferrite The polymer matrix dilutes the magnetic volume fraction; that is the trade-off accepted for the geometry.
Tolerances	Held by the tool, confirmed per drawing Tolerance the mold holds directly; any dimension that still needs machining is agreed on the drawing.
Typical Shapes	Rings, thin-wall cylinders, arcs, blocks and integrated assemblies Whether thin sections are feasible is checked per grade and drawing.

Documentation

Technical Documents

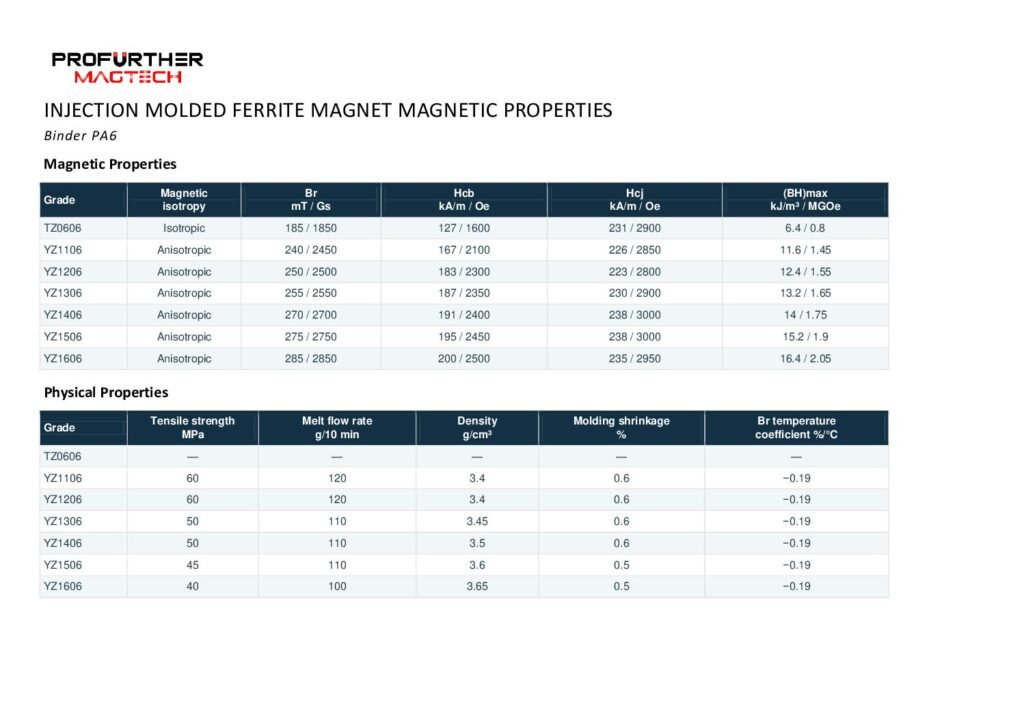

Injection Molded Ferrite Properties — PA6 / PA12 / PPS (PDF) Compound data for the three binder systems this route names — PA6, PA12 and PPS — with each compound's grade designation and its magnetic and physical values, inside the -40 °C to 130 °C window the route is stated for. These grade values appear nowhere else on the site: the route page says only that flux density is lower than sintered ferrite, so a compound has to be shortlisted from this table before tooling is quoted.
Select the preview to open the document in a new tab.
Download PDF

Magnetization

Magnetization on This Route

Orientation and magnetization are not the same step: orientation is set while the part is formed or compacted, magnetization is applied afterwards, and what a part can take depends on the material, the tooling and the geometry. Describe the direction, the pole pattern and the face the poles have to sit on — or send the part or its drawing and we will read it with you.

Magnetization feasibility depends on the material, manufacturing process, geometry and required pole pattern. Send us your drawing, sample or magnetization diagram for evaluation.

Explore Magnetization Directions & Pole Patterns → · Magnetization directions and pole patterns explained → · Send the drawing or a sample →
